Location：home > products > Casement Window Hardware > operator

ELITE-07AL-13.5

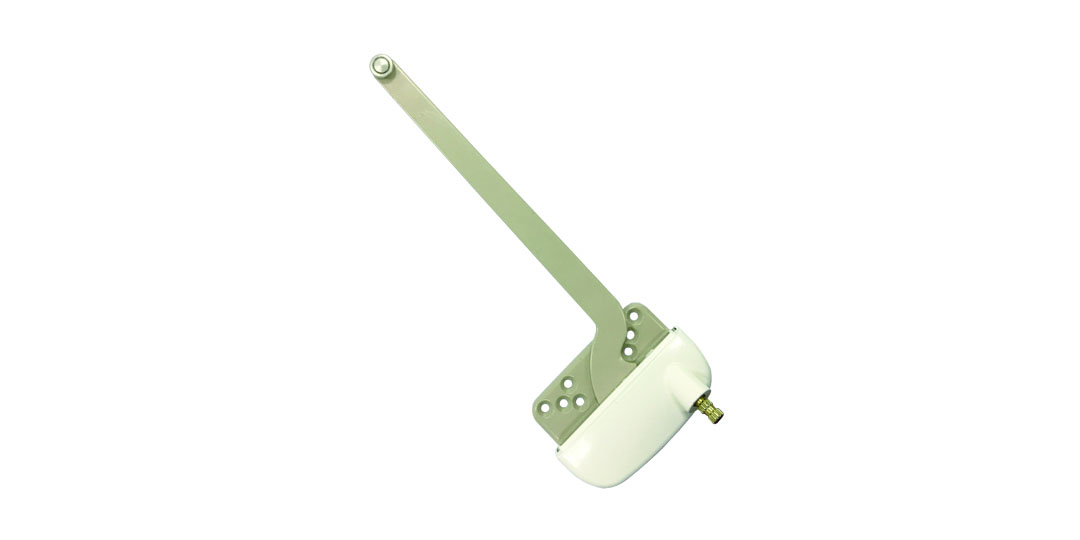

Elite-Straight Arm Operator

Technical documentation and download

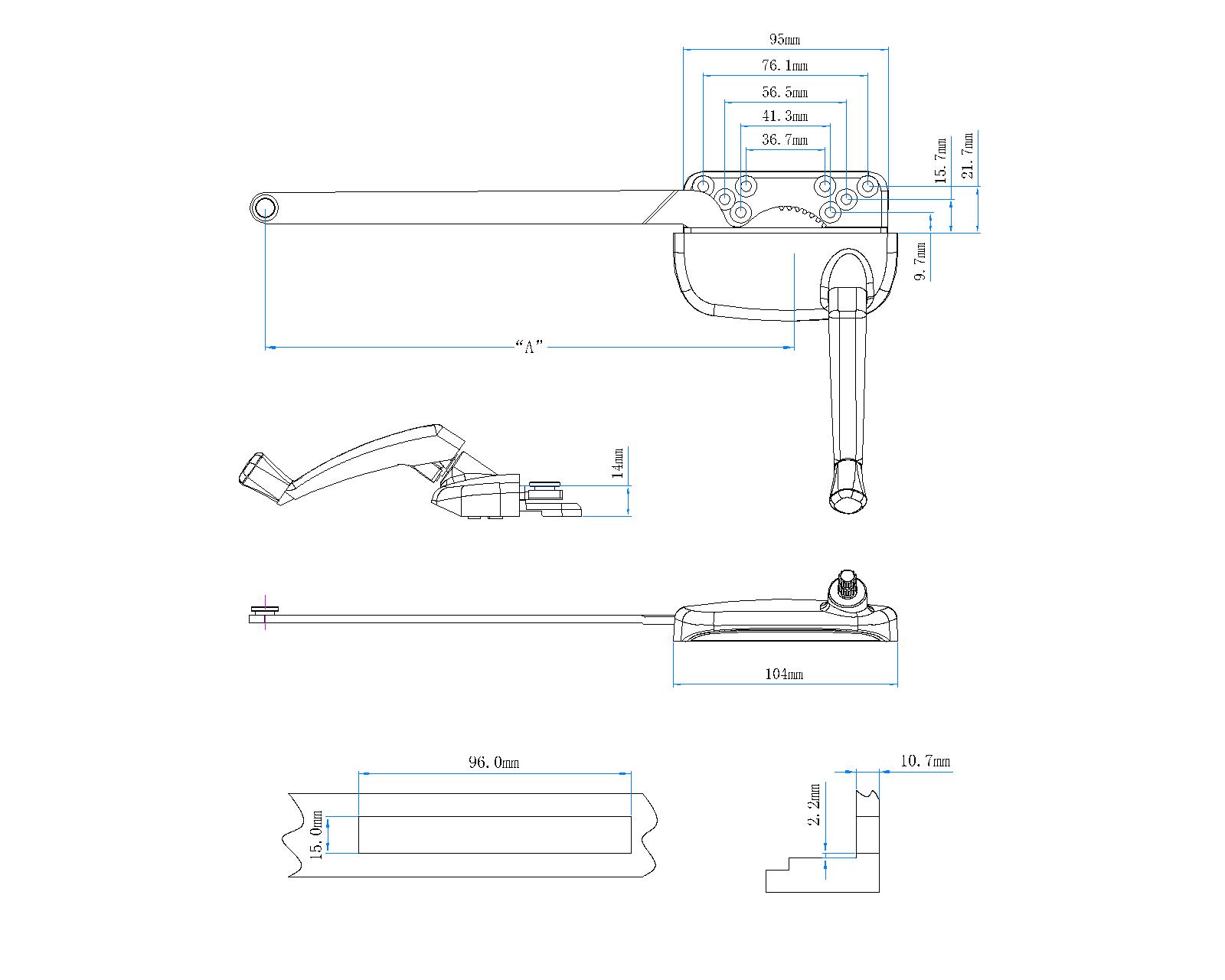

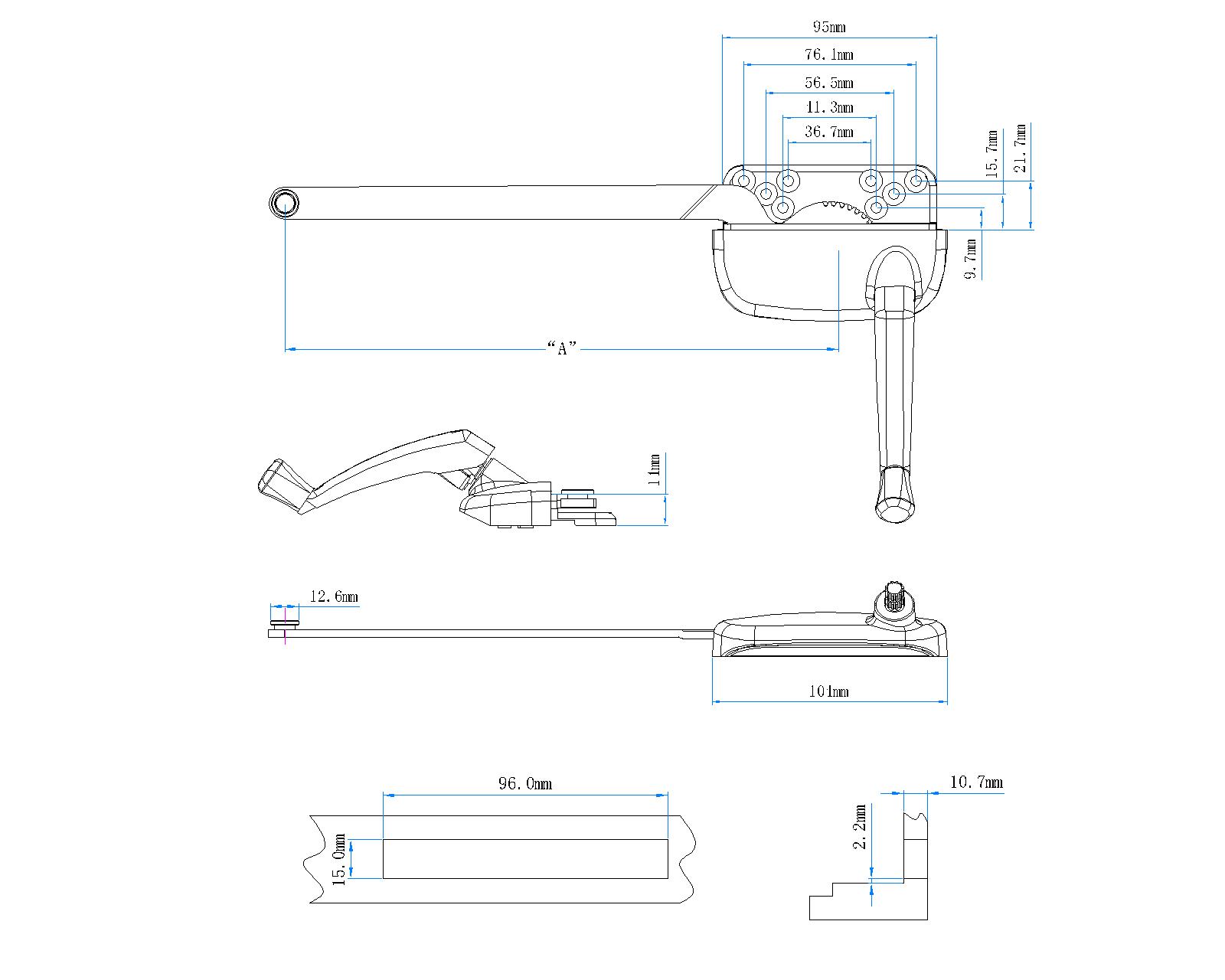

Straight Arm Operator

Ordering details

Part Number	Description	Box Qty.	MEAS.	G.W./KGS
ELITE-07AL-7.5	7.5″ Straight Arm Operator LH ("A"=192.2mm)	20	34.232.215.3	9.1
ELITE-07AR-7.5	7.5″ Straight Arm Operator RH ("A"=192.2mm)	20	34.232.215.3	9.1
ELITE-07AL-9.5	9.5″ Straight Arm Operator LH ("A"=243.1mm)	20	34.232.215.3	9.6
ELITE-07AR-9.5	9.5″ Straight Arm Operator RH ("A"=243.1mm)	20	34.232.215.3	9.6
ELITE-07AL-13.5	13.5″ Straight Arm Operator LH ("A"=344.6mm)	20	393415.3	10.6
ELITE-07AR-13.5	13.5″ Straight Arm Operator RH ("A"=344.6mm)	20	393415.3	10.6

Accessories

Part Number	Description	Box Qty.	MEAS.	G.W./KGS

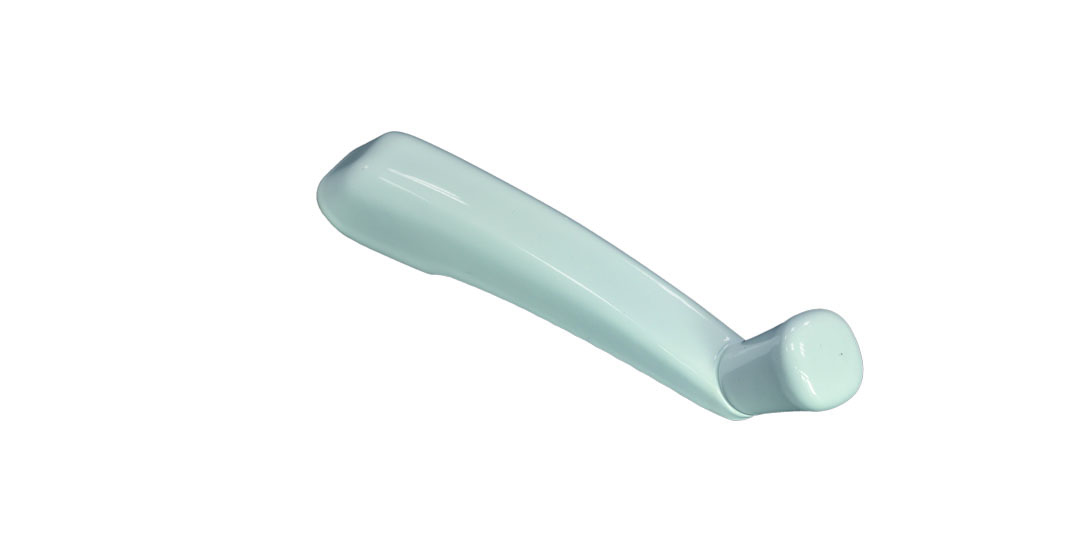

FH-01	OPER. HANDLE/COVER	100	29.628.623	11.2
ELITE-07-3	Straight Arm Operator TRACK	100	381516.5	10.8

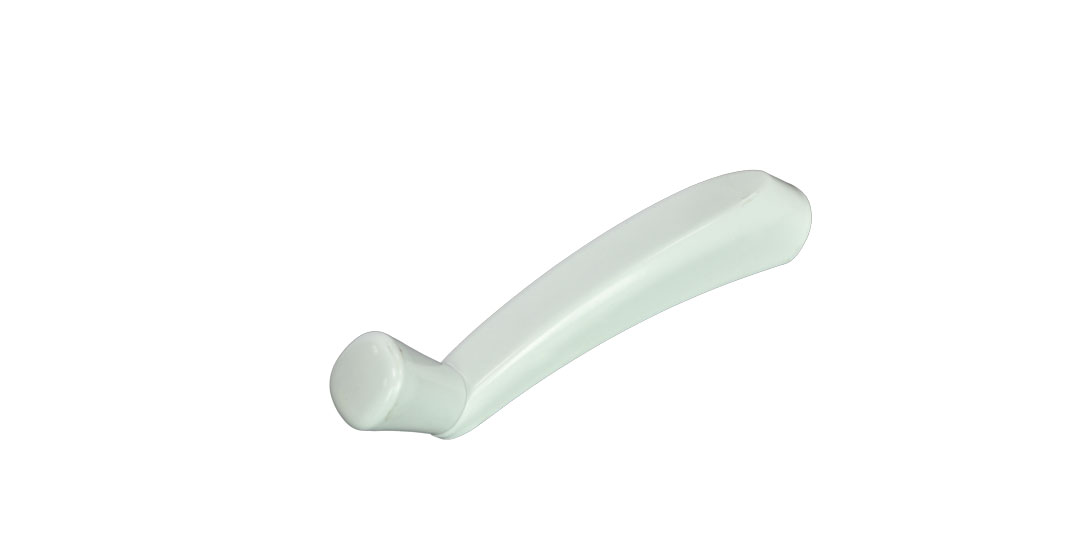

FH-02	OPER. HANDLE/COVER	100	29.628.623	11.2
