ELITE-06L-7.5

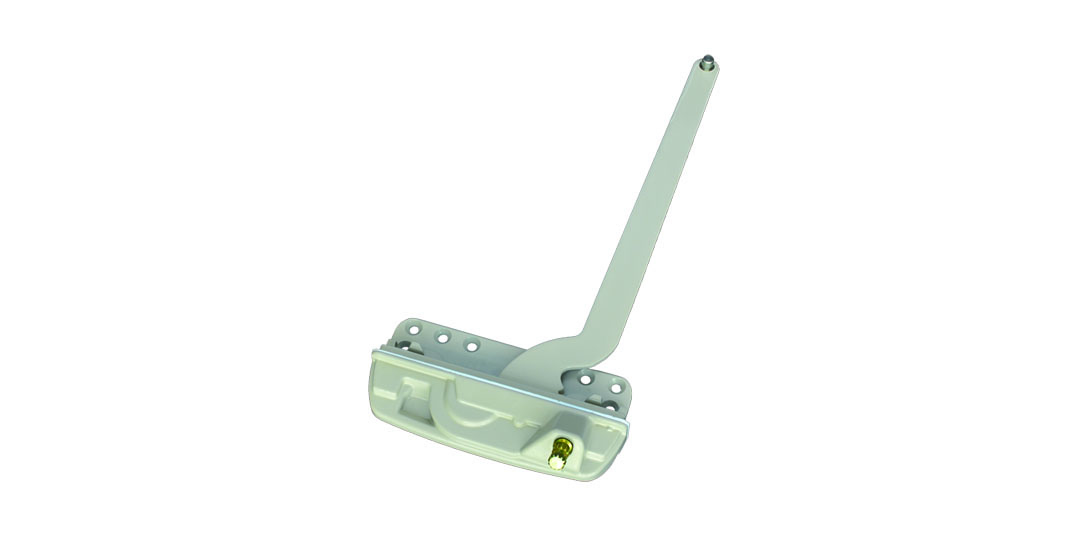

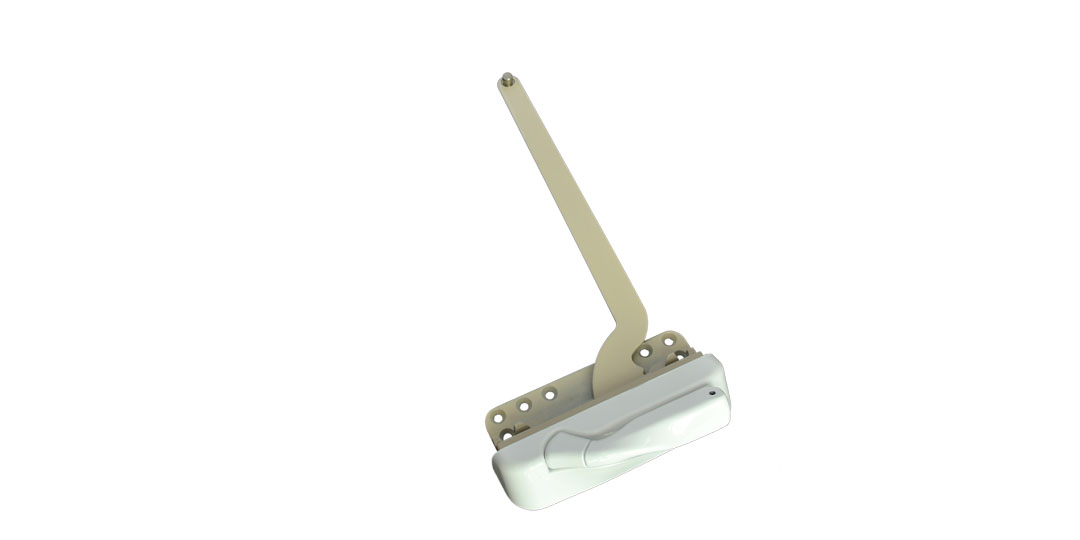

Straight Arm Operator

Technical documentation and download

Straight Arm Operator

Ordering details

Part Number	Description	Box Qty.	MEAS.	G.W./KGS

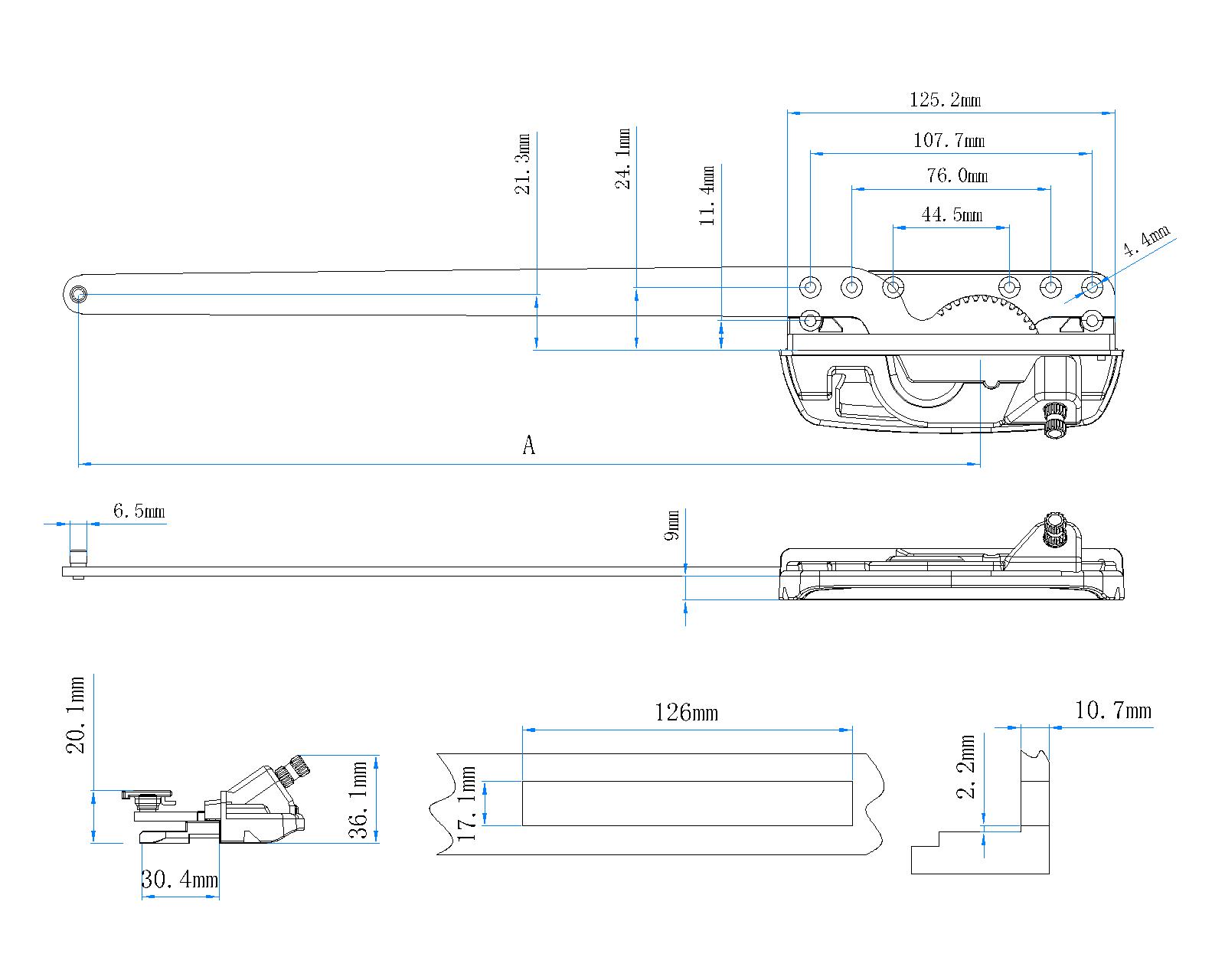

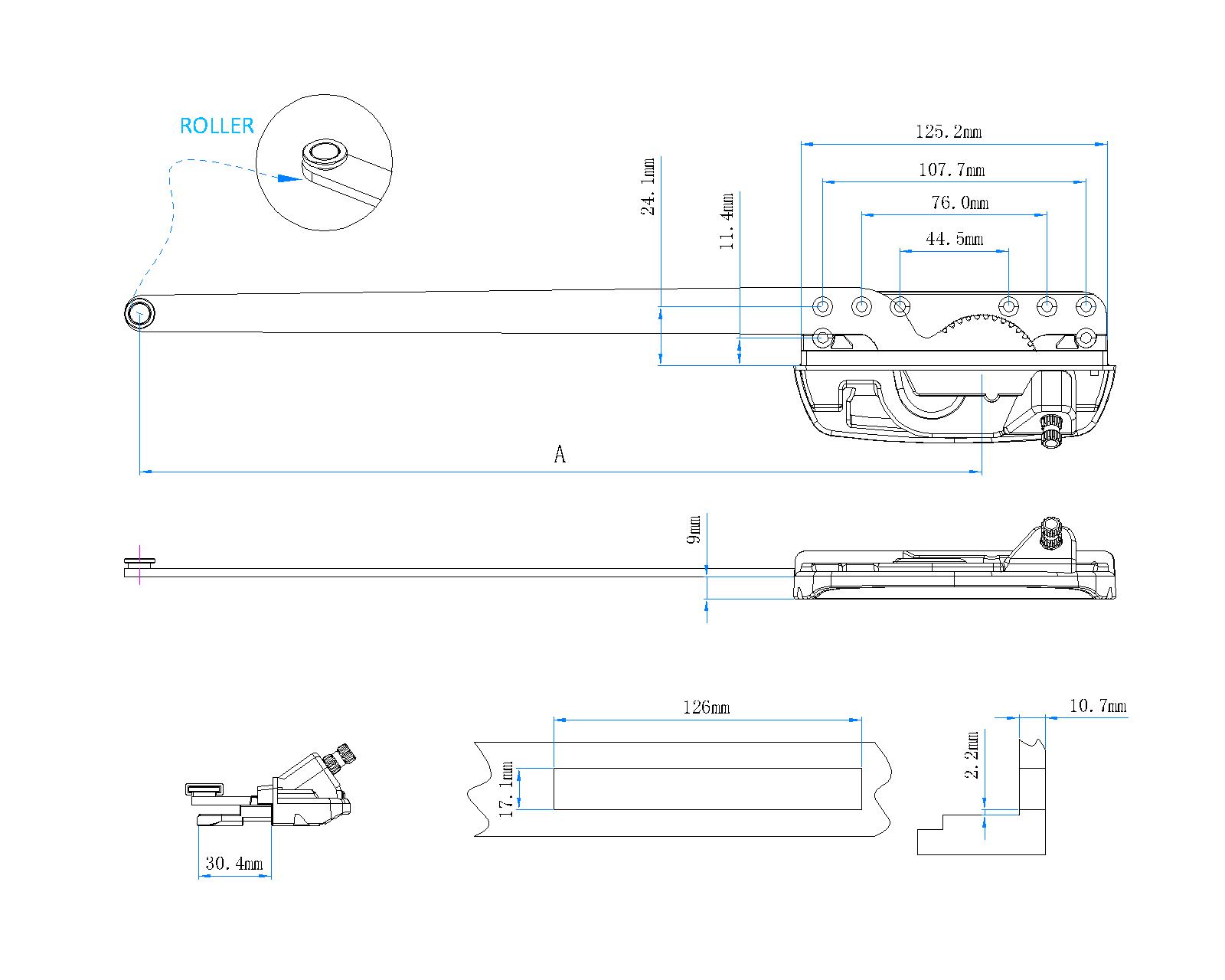

ELITE-06L-7.5	7.5″ Straight Arm Operator LH ("A"=192.2mm)	20	34.232.215.3	9.1
ELITE-06R-7.5	7.5″ Straight Arm Operator RH ("A"=192.2mm)	20	34.232.215.3	9.1
ELITE-06L-9.5	9.5″ Straight Arm Operator LH ("A"=243.1mm)	20	34.232.215.3	9.6
ELITE-06R-9.5	9.5″ Straight Arm Operator RH ("A"=243.1mm)	20	34.232.215.3	9.6
ELITE-06L-13.5	13.5″ Straight Arm Operator LH ("A"=344.6mm)	20	393415.3	10.6
ELITE-06R-13.5	13.5″ Straight Arm Operator RH ("A"=344.6mm)	20	393415.3	10.6

Accessories

Part Number	Description	Box Qty.	MEAS.	G.W./KGS
FH-03A	OPER. HANDLE/COVER LH	100	29.628.623	11.2
ELITE-01-3 BG OR ELITE-01-3 SS	DUAL ARM TRACK/SLIDE OR 304 stainless steel DUAL ARM TRACK/SLIDE	100	381516.5	10.8
FH-03B	OPER. HANDLE/COVER RH (Related Items of Straight Arm Operator RH)	100	29.628.623	11.2
